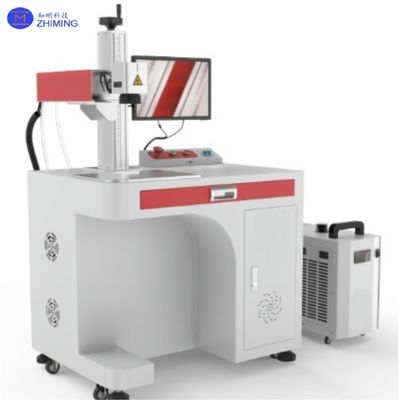

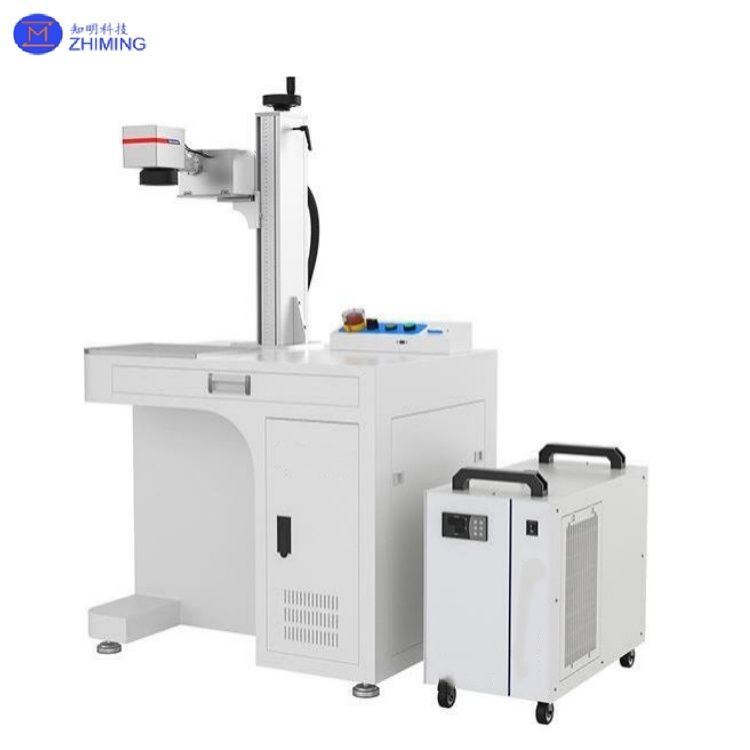

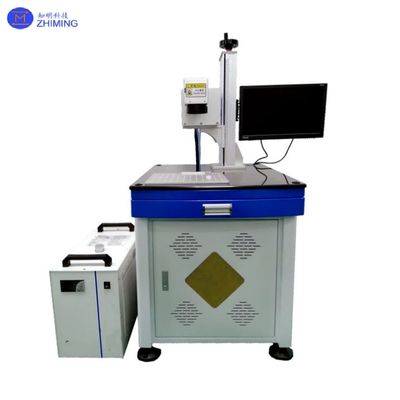

355nm UV Laser Marking Machine 3W-25W for Various Plastic Marking
The UV laser marking machine is a high-end product in laser marking equipment, utilizing a 355nm UV laser source (generated via third-order intracavity frequency conversion technology to convert infrared lasers into ultraviolet light). Through "cold processing", it achieves permanent marks on material surfaces via laser-material interaction. Its features include micron-level precision (minimum line width: 0.01mm), minimal heat-affected zone (≤5μm), and high adaptability, making it ideal for scenarios demanding stringent marking precision, aesthetic quality, or material preservation, such as electronic components, medical devices, glass products, and cosmetic packaging.
ZMSH Service & Technical Support:
- Customized Solutions: Adjust laser parameters (power, frequency) to adapt to special materials (e.g., titanium alloys, ceramics).
- Full Lifecycle Service Support:
- Rapid Response: 2-hour remote diagnostics, 24/7 on-site engineer service (nationwide coverage).
- Free Upgrades: Software algorithm updates supporting AI-powered positioning and batch marking.
- Zero Consumable Costs: Lifetime maintenance-free design (requires only periodic optical lens cleaning).
Core Value & Impact:
- Brand Value Enhancement: High-precision anti-counterfeit marking on luxury packaging and jewelry for enhanced product differentiation.
- Quality Traceability: Unique serial number marking on medical catheters and electronic components to meet FDA/ISO traceability standards.
- Production Cost Reduction: Replaces traditional ink printing, reducing material waste by >10% annually (saving >¥100,000 per unit).
Equipped with cold processing technology and ultra-fine marking capabilities, this device has become a critical tool in precision manufacturing and high-end consumer industries, driving efficiency and brand upgrading.
UV Laser Marking Machine: Technical Specifications
|
LASER POWER
|
3W |
5W |
10W |
15W |
20W |
25W |
|
LASER WAVE LENGTH
|
355nm |
|
FREQUENCY RANGE
|
20kHz-150kHz |
40kHz-300kHz |
|
PULSE LENGTH
|
15ns@30kHz |
15ns@40kHz |
18ns@60kHz |
|
SPOT DIAMETER
|
0.55±0.15mm |
0.45±0.15mm |
|
BEAM QUALITY
|
≤1.2 |
|
POLARIZATION DIRECTION
|
100:1 horizontal |
|
CARVING SPEED
|
≤7000mm/s |
|
ENGRAVING RANGE
|
110mm×110mm (Custom optional) |
|
ENGRAVING DEPTH
|
0.1mm-2.0mm (Depending on the material) |
|
WORKING TEMPERATURE
|
15~35°C |
|
COOLING WAY
|
Water cooling/Air cooling |
|
WORK ENVIRONMENT
|
Dry, clean, and ventilated |
|
POWER SUPPLY
|
AC220V/50Hz (Custom optional) |
|
POWER CONSUMPTION
|
≥0.6KW |
≥1KW |
≥1.5KW |
|
WEIGHT
|
≈100KG |
UV Laser Marking Machine: Working Principles
The UV laser marking machine operates on photochemical interactions:
- Laser Generation: A 355nm UV laser emits short-wavelength beams (photon energy: ~3.5eV), focused into micrometer-scale spots (10–15μm diameter) via optical systems.
- Material Interaction: High-energy UV light directly breaks molecular bonds (vs. thermal ablation), vaporizing surface molecules to create permanent marks.
- Cold Processing Advantage: Unlike traditional lasers (thermal effects), UV lasers generate ≤5μm heat-affected zones, avoiding material deformation or discoloration.
UV Laser Marking Machine: Technical Features
Core advantages span precision, adaptability, and eco-friendliness:
1. Ultra-Fine Processing:
- Spot size: ≤10μm; minimum line width: ≤0.02mm.
- Applications: 0.1mm text on chips, micro-marking on toothbrush handles.
2. Low Thermal Damage:
- Heat-affected zone: ≤5μm (1/20th of CO₂ lasers).
- Suitable for heat-sensitive materials (silicon wafers, medical tubing, plastics).
3. Material Versatility:
- Process metals (stainless steel, aluminum), non-metals (plastics, ceramics, glass), and polymers (PET, ABS).
4. Eco-Friendly Design:
- No inks/chemicals; complies with RoHS/REACH.
- Noise-free and dust-free operation.
5. High Efficiency & Stability:
- Speed: 300 characters/sec; laser lifespan: 20,000 hours (zero maintenance).
- Power consumption: ~850W (1/3 of conventional systems).
UV Laser Marking Machine: Application Scenarios
Key industries requiring high precision, high value-added, and eco-compliance:
1. Electronics & Semiconductors:
Wafer marking (0.1mm characters, acid/heat resistance).
PCB microvia drilling (±2μm accuracy).
2. Medical & Pharmaceuticals:
Surgical tool traceability (QR codes surviving 1,000+ sterilizations).
Tamper-proof drug packaging marks.
3. Glass & Ceramics:
Anti-counterfeit etching on bottles (0.5% defect rate vs. 12% for sandblasting).
4. Plastics & Consumer Goods:
Toothbrush branding (UV-resistant marks).
Cosmetic packaging text (superior to inkjet).
5. Emerging Fields:
Solar panel serialization.
Automotive part identification (engine models).
FAQ of fiber laser marking machine
1. Q: What materials can UV laser marking machines process?
A: UV laser marking machines can mark plastics (PP, ABS, PC), glass, ceramics, metals (stainless steel), and electronics (PCB, semiconductors) with high precision and minimal heat damage.
2. Q: Why choose UV lasers over CO2 or fiber lasers?
A: UV lasers offer finer resolution (<10μm), cold processing (no thermal distortion), and eco-friendly operation (no consumables), ideal for delicate materials like medical devices and electronics.
