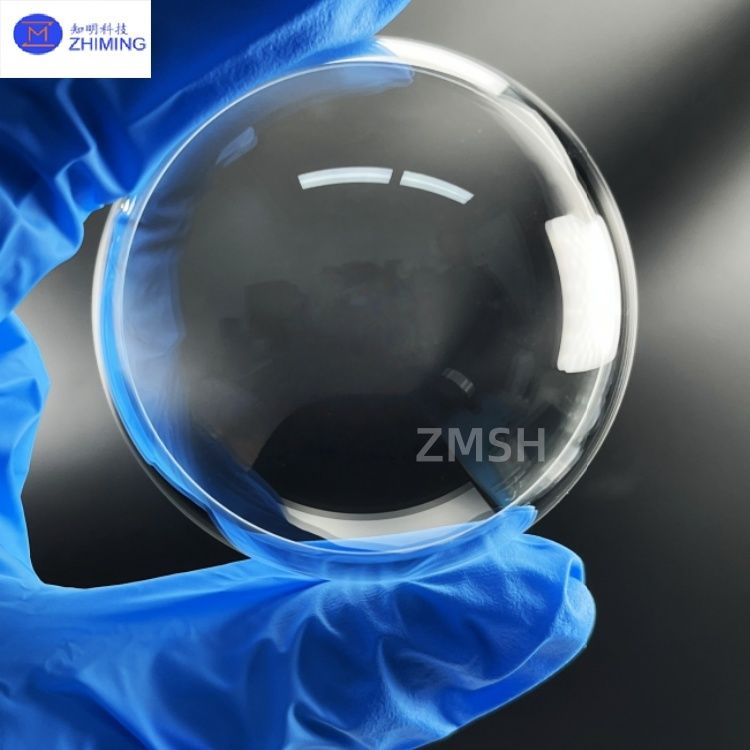

Custom Sapphire Optical Glass Domes for Monitoring Window Protection
A sapphire dome (or sapphire hemispherical dome) is a transparent protective or optical window component made from sapphire (Al₂O₃ single crystal). Its hemispherical or super-hemispherical structure minimizes light refraction distortion, making it widely used in scenarios requiring high transmittance, environmental resistance, and impact durability. Depending on processing techniques and applications, it is categorized into standard hemispheres, notched domes, and super-hemispheres (e.g., 3/4D slotted types). Sapphire’s unique physical and chemical properties position it as an ideal choice for advanced optical systems, military equipment, and industrial devices.
Sapphire Optical Glass Domes Core Characteristics
1.Superior Optical Performance
- High Transmittance: Sapphire achieves >90% transmittance across ultraviolet (200 nm), visible (400–700 nm), and mid-infrared (3–5 μm) spectra, with premium materials reaching 99% .
- Low Reflectivity & Scattering: Anti-reflective coatings reduce surface reflectivity to <1%, while the crystalline structure ensures minimal scattering (<0.1%).
- Broad Spectral Compatibility: Suitable for UV imaging, thermal imaging (mid-wave IR), and multi-spectral optical systems.
2.Extreme Environmental Adaptability
- Temperature Resistance: Operates in -40°C to +85°C; withstands short-term exposure up to 150°C (e.g., missile radomes) .
- Chemical & Aging Resistance: Immune to acids, alkalis, salt spray, and UV degradation; resists yellowing or brittleness over time.
- Impact & Abrasion Resistance: Mohs hardness of 9 (second only to diamond); withstands sand, hail, and mechanical shocks with micro-scale scratch resistance .
3.Structural Design Advantages
- Lightweight: Near-net-shape fabrication (e.g., edge-defined film-fed growth, EFG) reduces material waste; thickness as low as 0.5 mm .
- Sealing Integrity: IP66-rated waterproof/dustproof, ideal for underwater or dusty environments.
- Customizability: Supports diameters from 25–450 mm, thickness 0.5–2 mm, and custom cuts (notches, slits) for tailored installations.
Sapphire Optical Glass Domes Key Applications
1.Defense & Military
- Missile Radomes: Protect infrared/UV guidance systems under high-speed aerodynamic heating (e.g., AIM-9X missiles) .
- Electro-Optical Pods: Safeguard thermal cameras, laser rangefinders, and navigation sensors in combat zones.
2.Aerospace
- Satellite Windows: Enable Earth observation and astronomical imaging under vacuum and extreme thermal cycling.
- Drone/UAV Sensors: Protect cameras and LiDAR systems for high-resolution mapping and surveillance.
3.Industrial & Security
- High-Temperature Monitoring: Guard cameras in chemical reactors, refineries, and pipelines .
- Smart Traffic Systems: Reduce glare for license plate recognition in smart city deployments.
4.Medical & Research
- Endoscopes & Microscopes: Provide sterile, autoclave-resistant observation windows.
- Laser Laboratories: Transmit high-power laser beams without degradation.
5.Marine & Underwater
- Deep-Sea Exploration: Withstand seawater corrosion for underwater robotics and observatories.
- Naval Navigation: Protect sonar and optical sensors from salt spray and high pressure.
Related product recommendations
1. Custom Monocrystalline Sapphire Optical Domes for Missile Seekers
Q1: What are the key advantages of sapphire domes over other optical materials?
A1: Sapphire domes offer >99% transparency (UV to mid-IR), -40°C to +85°C thermal stability, and Mohs hardness 9 for scratch/dust resistance.
Q2: Where are sapphire domes most commonly applied?
A2: Primarily in military missile guidance systems, aerospace sensors, and industrial high-temperature monitoring due to extreme durability.
