Custom 2inch 3inch 4inch 6inch 8inch 12inch Quartz Wafers Transparent Fused Silica Substrates

Detalhes do produto

Place of Origin: CHINA

Marca: ZMSH

Certificação: rohs

Model Number: 2inch 3inch 4inch 6inch 8inch 12inch Quartz Wafers

Termos de pagamento e envio

Minimum Order Quantity: 10

Preço: by case

Packaging Details: Package in 100-grade cleaning room

Delivery Time: 5-8weeks

Payment Terms: T/T

Supply Ability: 1000pcs per month

Obtenha o melhor preço
Destacar:
Size:
2inch 3inch 4inch 6inch 8inch 12inch
LTV:
< 0.5µm
TTV:
< 2µm/3µm/5µm
Surface Type:
SSP/DSP
Surface Roughness:
≤1nm
Applications:
Semiconductor Lithography Masks, UV Optical Devices
Size:
2inch 3inch 4inch 6inch 8inch 12inch
LTV:
< 0.5µm
TTV:
< 2µm/3µm/5µm
Surface Type:
SSP/DSP
Surface Roughness:
≤1nm
Applications:
Semiconductor Lithography Masks, UV Optical Devices
Custom 2inch 3inch 4inch 6inch 8inch 12inch Quartz Wafers Transparent Fused Silica Substrates



2-12inch Quartz Wafer Introduction

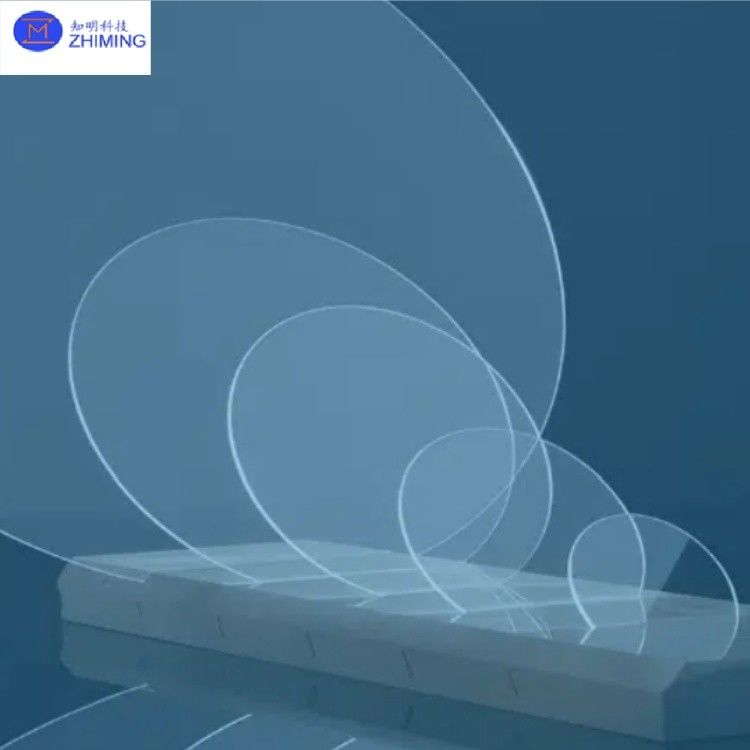

Custom 2inch 3inch 4inch 6inch 8inch 12inch Quartz Wafers Transparent Fused Silica Substrates 0

Custom 2inch 3inch 4inch 6inch 8inch 12inch Quartz Wafers Transparent Fused Silica Substrates






Quartz wafers are precision substrates made from high-purity synthetic quartz materials, widely used in semiconductors, optoelectronics, optics, and microelectromechanical systems (MEMS). ZMSH specializes in the R&D and production of quartz semiconductor materials, offering products such as quartz wafers, quartz optical windows, quartz tubes, and quartz boats, with quartz wafers as our core product line. We provide customizable solutions for 2-inch to 12-inch wafers, meeting specific requirements in dimensions, thickness, and surface treatments (polishing, coating, etc.).







ZMSH offer in-stock availability and custom machining services, ensuring high precision (e.g., TTV ≤5μm), superior flatness (Ra ≤1nm), and excellent high-temperature resistance (softening point up to 1730°C). Our products are widely applied in semiconductor manufacturing, photomask technology, sensors, and laser systems.










Data for 2-12inch quartz wafer





Size Inch 2inch 3inch 4inch 6inch 8inch 12inch



Diameter

mm 50.8 76.2 100 150 200 300
Tolerance (±) mm 0.2 0.2 0.2 0.2 0.2 0.2
Thickness µm 100 and up 100 and up 100 and up 300 and up 400 and up 500 and up
Primary reference flat mm 32.5 32.5 32.5 57.5 Semi-notch Semi-notch
LTV (5mmx5mm) µm < 0.5 < 0.5 < 0.5 < 0.5 < 0.5 < 0.5
TTV µm < 2 < 2 < 2 < 3 <3 <5
Bow µm ±20 ±20 ±20 ±30 ±40 ±40
Warp µm ≤ 30 ≤ 30 ≤ 30 ≤ 40 ≤ 50 ≤ 50
PLTV(5mm*5mm)<0.4um % ≥95% ≥95% ≥95% ≥95% ≥95% ≥95%
Edge Rounding mm SEMI Std. SEMI Std. SEMI Std. SEMI Std. SEMI Std. SEMI Std.
Surface Type   SSP/DSP SSP/DSP SSP/DSP SSP/DSP SSP/DSP SSP/DSP
Surface Roughness nm ≤1 ≤1 ≤1 ≤1 ≤1 ≤1







Key features of 2-12inch quartz wafer

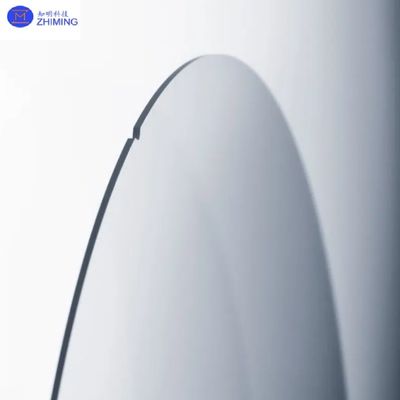

Custom 2inch 3inch 4inch 6inch 8inch 12inch Quartz Wafers Transparent Fused Silica Substrates 1



The core properties of quartz wafers include:



  • 1. High-Purity Material: Synthetic quartz (e.g., Suprasil or Corning 7980) with SiO₂ purity ≥99.99%, minimizing impurities in semiconductor processes.

  •

  • 2. Thermal Stability: Low coefficient of thermal expansion (5.5×10⁻⁷/°C), withstanding temperatures exceeding 1000°C for extreme environments.

  •

  • 3. Optical Performance: High transmittance from UV to IR wavelengths (e.g., >90% in deep UV), ideal for lithography and laser applications.

  •

  • 4. Surface Precision: Ultra-precision polishing with surface roughness (Ra) ≤0.5nm and total thickness variation (TTV) ≤5μm.

  •

  • 5. Size Range: Standard sizes from 2-inch, 4-inch, 6-inch, 8-inch to 12-inch, with support for custom specifications.

  •

  • 6. Chemical Inertness: Resistant to strong acids (except HF), alkalis, and plasma etching, suitable for semiconductor processes.

  •






Application fields​ of 2-12inch quartz wafer





Quartz wafers play a critical role in advanced technology sectors, as detailed below:




Application Field Specific Uses Advantages of Quartz Wafers
Semiconductor Manufacturing - Photomask substrates
- Etching process carriers
- CMP polishing pads
- Temporary bonding wafers
High flatness, low thermal expansion, plasma corrosion resistance
Optoelectronic Devices - Laser windows
- Optical filter substrates
- IR sensor substrates
- Photodetector packaging
High UV-IR transmittance, low absorption loss
MEMS/NEMS - MEMS structural layers
- Precision sensor diaphragms
- Nanoimprint templates
Ultra-smooth surface, high rigidity, chemical stability
5G & RF Devices - SAW/BAW filter substrates
- High-frequency antenna bases
- Microwave dielectric resonators
Low dielectric loss, stable high-frequency signal performance
Research & Optics - Synchrotron radiation optics
- X-ray diffraction windows
- High-power laser mirrors
Radiation resistance, high laser damage threshold
New Energy - PV cell coating substrates
- Fuel cell electrolyte layers
- Lithium battery separator research
High-temperature resistance, ion migration prevention








ZMSH Services of Custom 2-12inch quartz wafer





Comprehensive Quartz Wafer Solutions: ZMSH provide custom quartz wafer production (2"-12" standard/non-standard sizes) with precision processing (polishing, coating, etc.) using high-purity materials (UV-grade fused silica, low-OH quartz). Our services include in-stock 4"/6"/8" wafers, ancillary products (optical windows, quartz tubes), full testing certification, and technical support for material selection and process optimization.

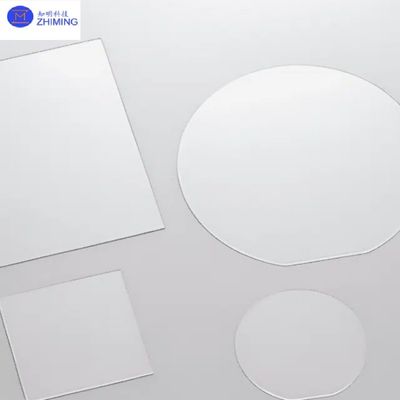

Custom 2inch 3inch 4inch 6inch 8inch 12inch Quartz Wafers Transparent Fused Silica Substrates 2Custom 2inch 3inch 4inch 6inch 8inch 12inch Quartz Wafers Transparent Fused Silica Substrates 3








FAQ of 2-12inch quartz wafer





1. Q: What sizes of quartz wafers are available for semiconductor applications?

A: We provide standard 2-inch to 12-inch quartz wafers with custom sizes and specifications available upon request.





2. Q: What are the key advantages of using quartz wafers in semiconductor manufacturing?

A: Quartz wafers offer exceptional thermal stability, high purity, and excellent chemical resistance, making them ideal for demanding semiconductor processes.
